About this item

• Main Purpose: Works as a complete trailer tail light guard box set for your new or existing trailer, has to stop turn tail lighting modes. Can be directly welded on or bolted onto the rear, side, bottom, or top frame of your trailer.
• Solid Built: Made of heavy-duty steel, painted with a quality black powder-coated finish, and pre-cut holes for 6” oval light, 2” round side light & license plate mounting. Durable for all weather elements.
• Awesome Brightness: Use high-quality SMD LED, lights output excellent high brightness red light for stop turn light, low brightness for tail side marker light, greatly improving visibility and ensuring you a safer night.

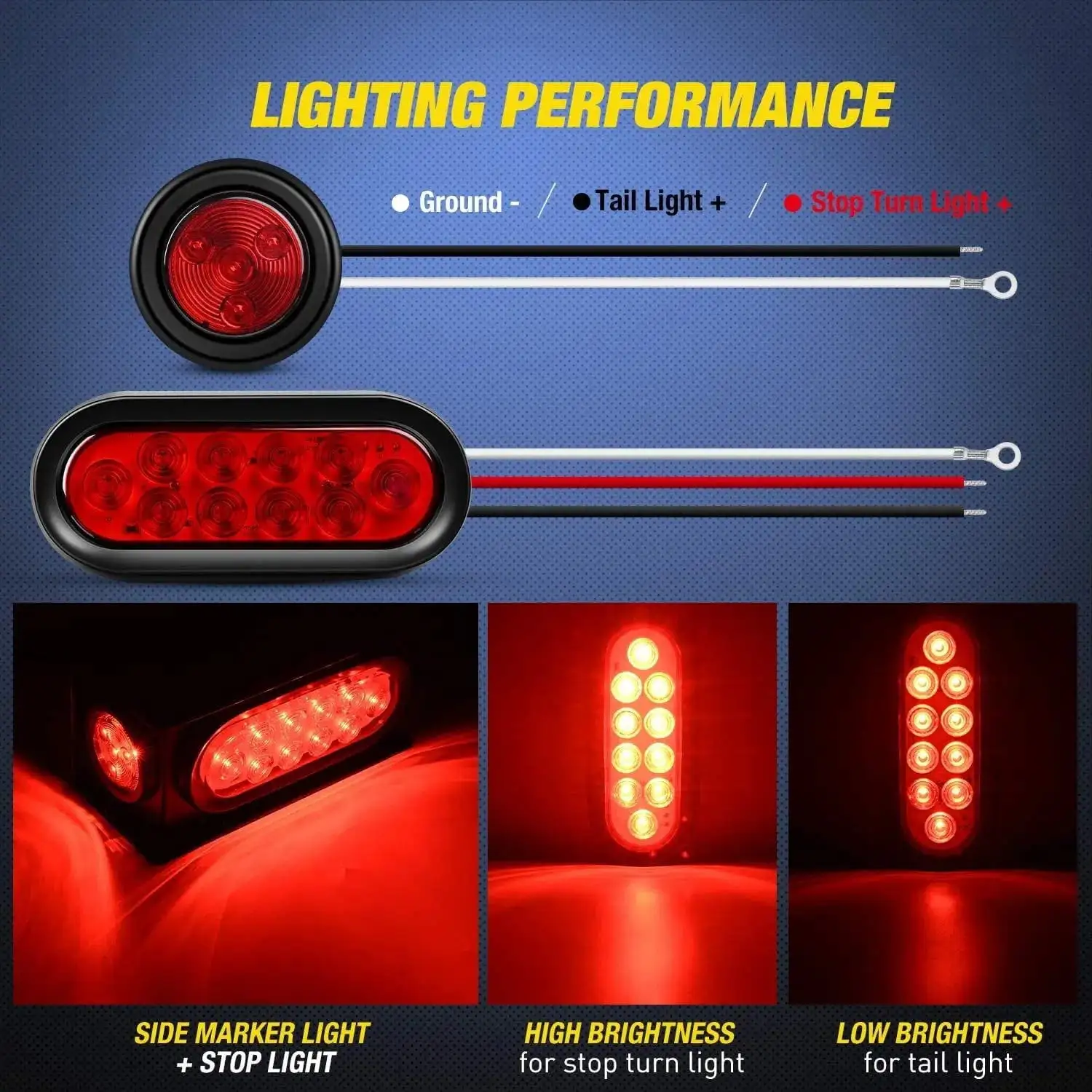

• Color-Coded Wires: White wire with O ring terminal for ground, black wire for tail side marker light, red wire for stop turn light.
• Simple Installation: All in a set and lights are mounted on the box. Just hardwire each pigtail wire to the corresponding wire on the trailer. And then weld on or bolt on the lightbox to the trailer frame

Complete trailer tail light guard box set designed for direct weld on or bolt on your new or existing trailer, work perfectly as stop turn tail and side marker light.

• Working Voltage: 12V DC
• LED Color: Red
• LED Quantity: 10PCS each light in each oval light, 4PCS in each round light

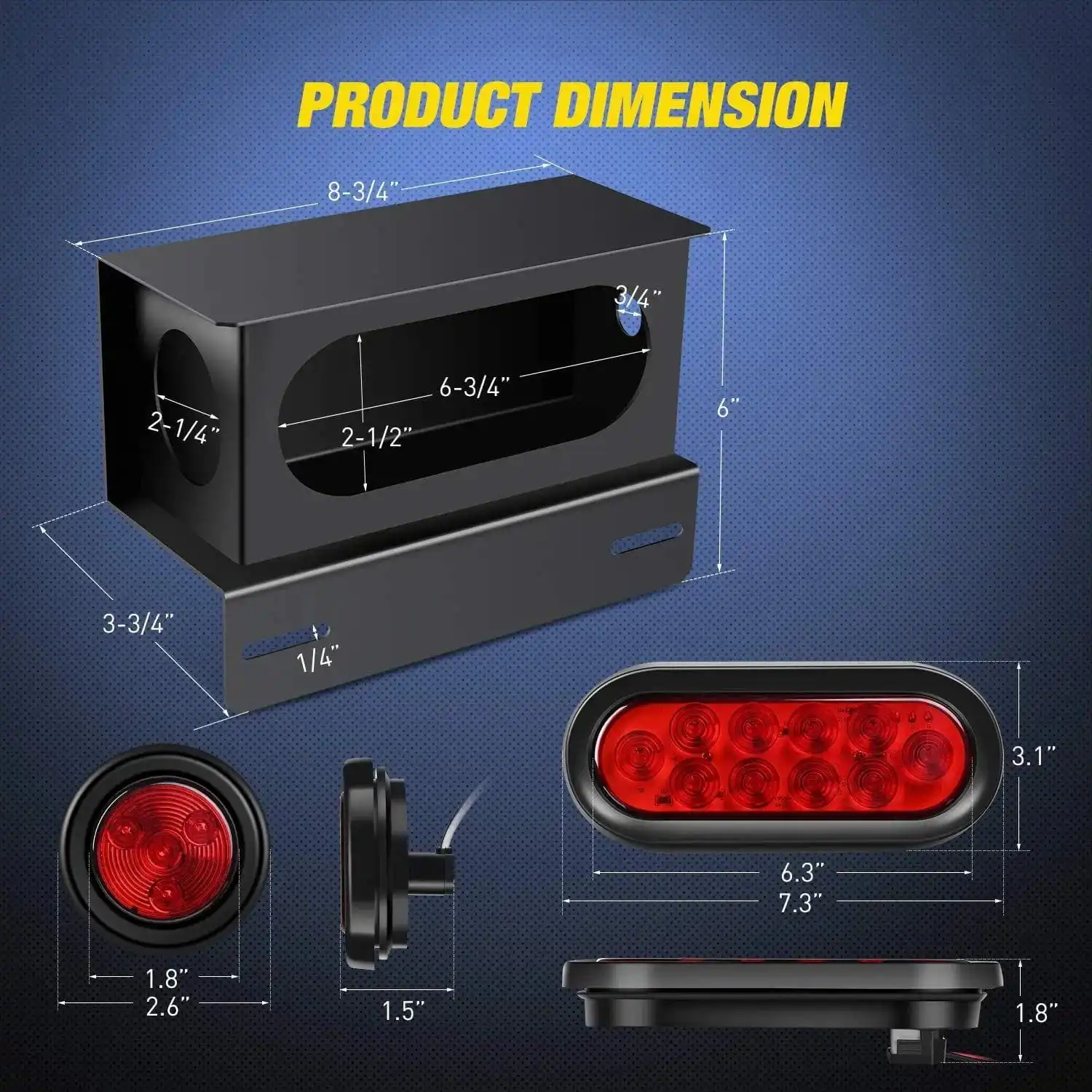

• Trailer light box size: Driver side: 8-3/4" x 6" x 3-3/4"; passenger side: 8-3/4" X 4" X 3-3/4"
• Oval light size with grommet: 7.3”x 3.1” x1.8”; Round light size with grommet: 2.6” x 1.5”; License plate mounting hole size: 1/4” in height

Key Features

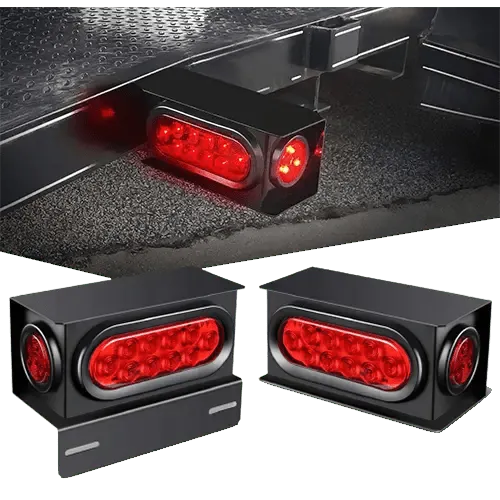

All in A Set

Comes with 6 inches of oval light and 2-inch round light mounted on a solid guard box in a set. Driver side with license plate mounting hole.

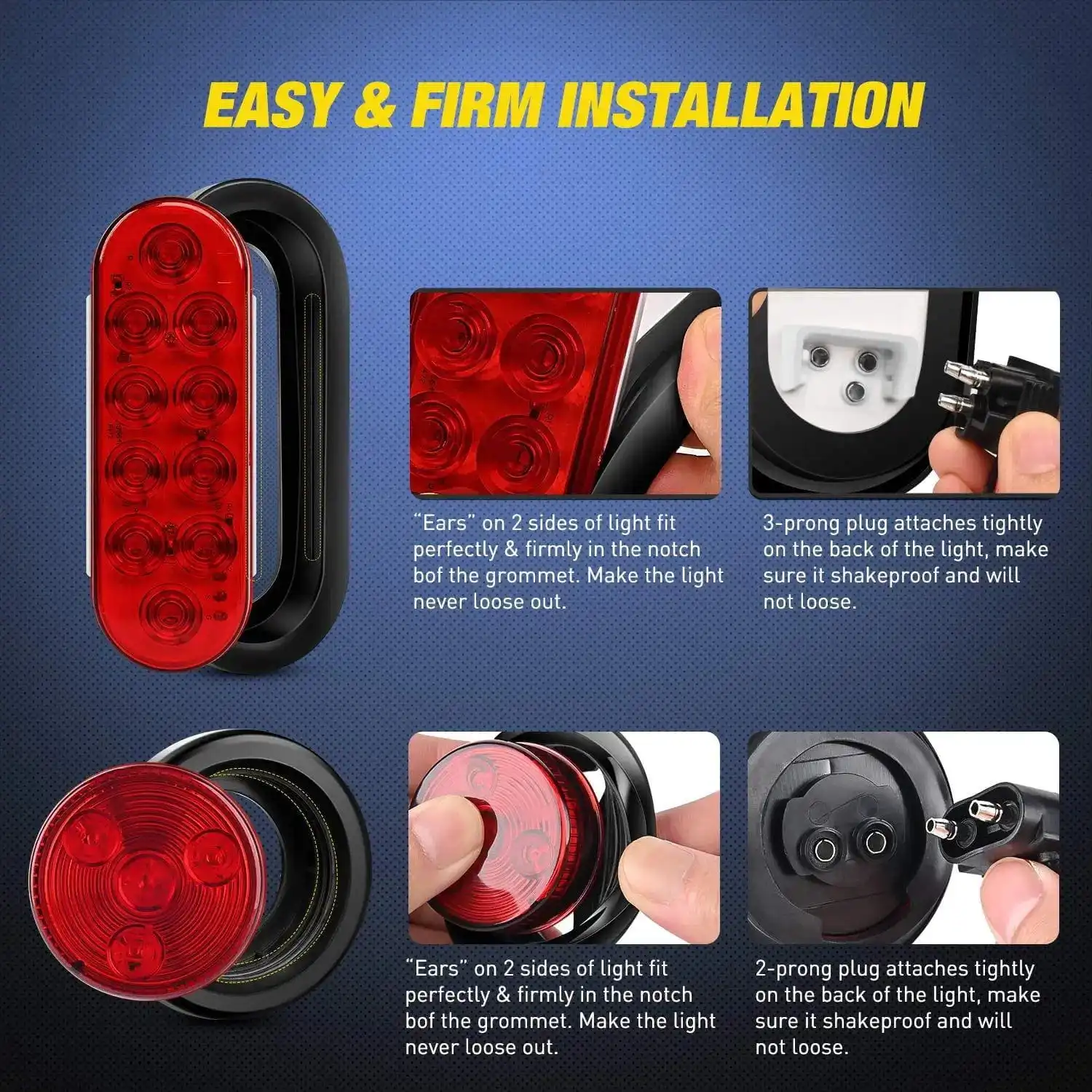

Firm Installation

Special designed, lights can be inserted firmly into the grommet, the grommet seat is firm to the box, and plugs are attached tightly to the light. No worries of light loose or wire loose.

Stop Turn Tail Side Marker Light

Work as stop turn tail side marker light. High brightness for stop turn light.

IP67 Waterproof

The oval light is upgraded in IP67 waterproof. Completely sonically sealed.



Applications

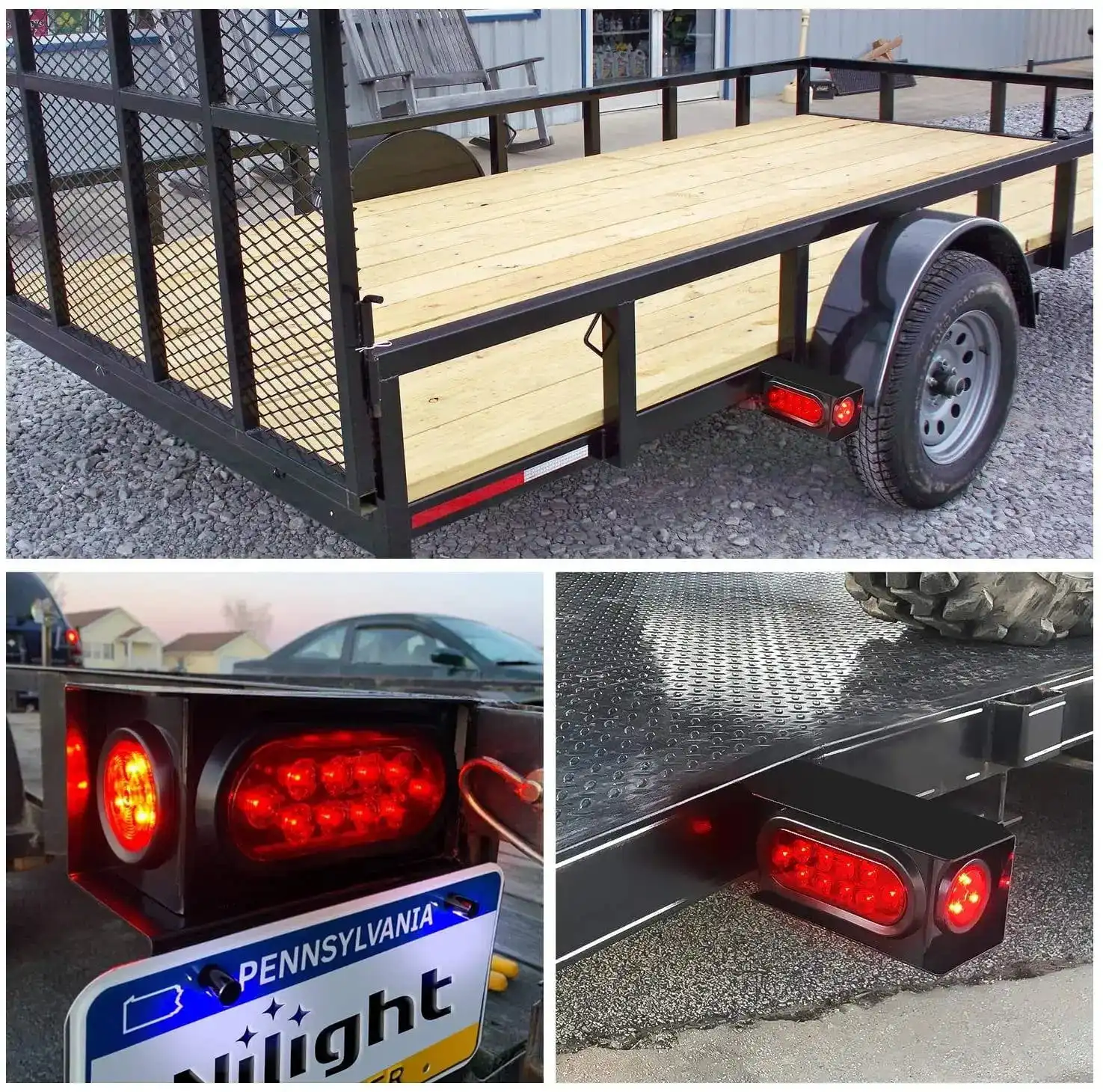

Direct weld on or bolt on the frame of trucks, trailers, tractors, semi-trailers, horse trailers, travel trailers, dump trucks, special vehicles, etc.
